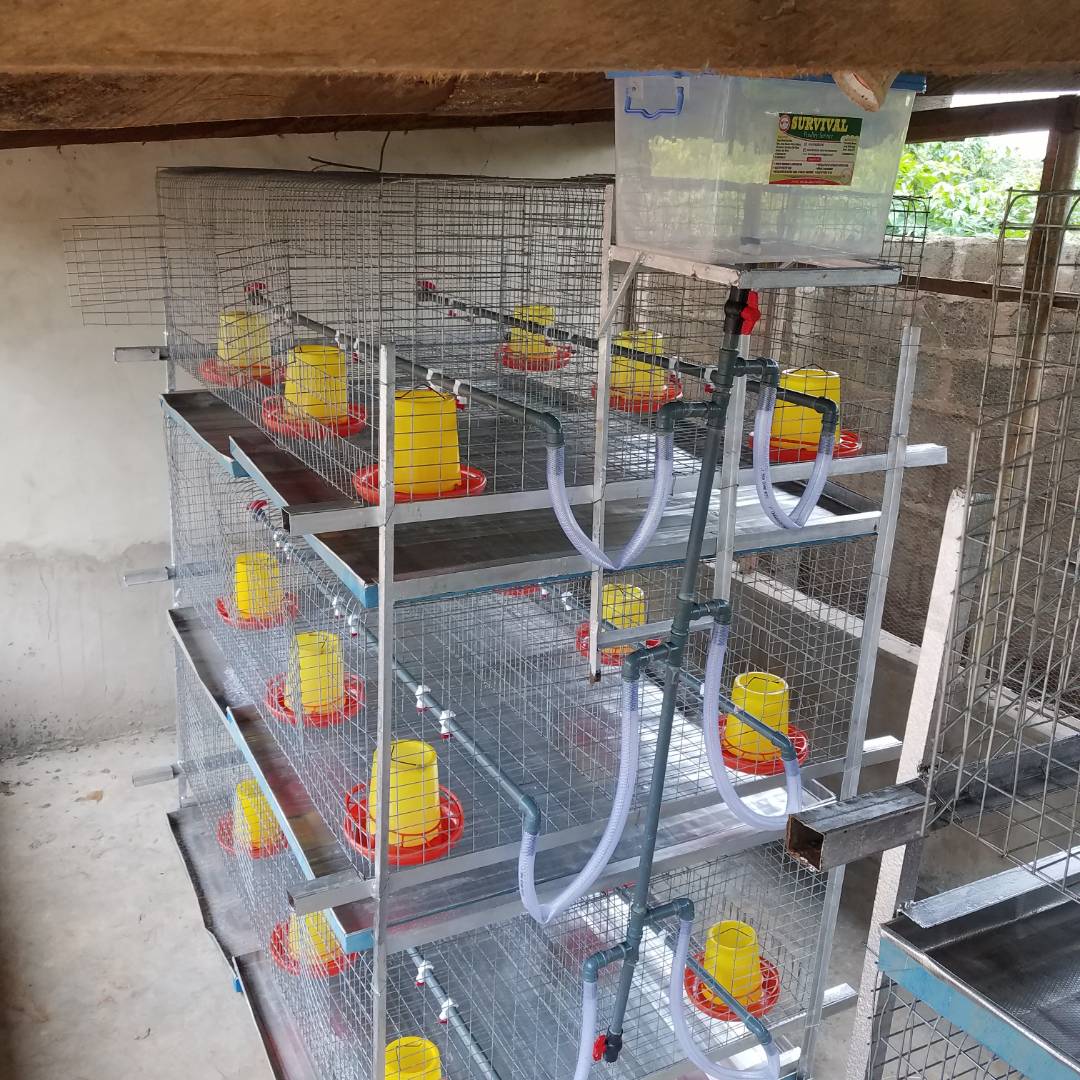

Layer Cages
Back
Abiding by ethical business policies, we are engaged in manufacturing and wholesaling a fine quality array ofΒ Poultry Layer Cages. The demand of offered layer cages is increasing as it is in compliance with globally laid quality norms. To ensure the same, we manufacture these cages using best grade raw material with the aid of modern machinery. Product-array which we have made available gamut in different specifications so as to cater to the multifarious demands of the clients.
Features:
High stocking density, with up to 3 tier cages.
Special isolating curtain provided to avoid heat transfer from top tier to bottom tier
Enough gaps on top of the cage allow bird to take the head out and breathe comfortably
No wet feet, fungal toxicity problems
The superior suspension system, making the super-structure of the cage row stiffer and better aligned from end to end.
Avoids manure marks and hair cracks on eggs.
Minimized handling & installation time.
Easy to clean it up with water.
Layer Conventional Cage
| Three Tier Reversible | |
| Female | |
| Box Front | 20 inches |
| Box Depth | 15 inches |
| Box Height (F) | 18 inches |
| Box Height (B) | 15 inches |
| Egg Roll | Present |
| No. Of Birds / Box | 5 |
| Floor Space / Bird | 60 sq. inches |
| Mesh | Galvanized |
| Top Mesh | Β 3 mm wire |
| Bottom | 2.5 mm wire |
| Partition Mesh | 2.5 mm wire |
| Feed Through | PVC Channel |
| Water | Layer nipples mounted on square pipe with accessories or water channel systems |
Layer Conventional Cage
| Three Tier Reversible | |
| Female | |
| Box Front | 18 inches |
| Box Depth | 15 inches |
| Box Height (F) | 18 inches |
| Box Height (B) | 15 inches |
| Egg Roll | Present |
| No. Of Birds / Box | 4 |
| Floor Space / Bird | 67.5 sq. inches |
| Mesh | Galvanized |
| Top Mesh | 3 mm wire |
| Bottom | 2.5 mm wire |
| Partition Mesh | 2.5 mm wire |
| Feed Through | PVC Channel |
| Water | Layer nipples mounted on square pipe with accessories or water channel systems |
Layer Battery
| Three Tier Reversible | |
| Female | |
| Box Front | 25 inches |
| Box Depth | 22 inches |
| Box Height (F) | 17 inches |
| Box Height (B) | 15 inches |
| Egg Roll | Present |
| No. Of Birds / Box | 9 |
| Floor Space / Bird | 61 sq. inches |
| Mesh | Galvanized |
| Top Mesh | 3 mm wire |
| Bottom | 2.50 wire |
| Partition Mesh | 2.5 mm wire |
| Feed Through | PVC Channel |
| Water | Layer nipples mounted on square pipe with accessories or water channel systems |
Californiaβ Aβ type Layer
| Three Tier Reversible | |
| Female | |
| Box Front | 20 inches |
| Box Depth | 18 inches |
| Box Height (F) | 15 inches |
| Box Height (B) | 13 inches |
| Egg Roll | Present |
| No. Of Birds / Box | 6 |
| Floor Space / Bird | 60 sq. inches |
| Mesh | Galvanized |
| Top Mesh | 3 mm wire |
| Bottom | 2.5 mm wire |
| Partition Mesh | 2.5 mm wire |
| Feed Through | GI Trough |
| Water | Layer nipples mounted on square pipe |
